Four Channel MiPro ACT-848 Kit

DESCRIPTION

This kit includes a four channel MiPro ACT-848 wireless microphone receiver, four TA-80 plug-on transmitters, and charging accessories.

ABOUT

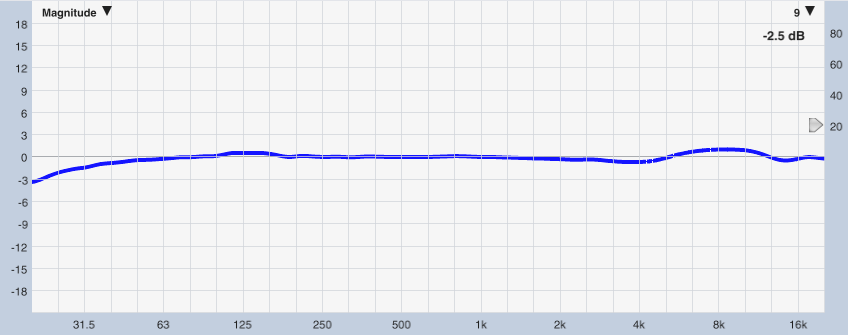

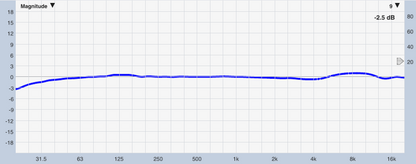

The ACT-848 from MiPro offers an affordable solution for 4 channel of wireless system measurement in a 1U rack space with XLR output. The ACT series receivers offer 10 (0-9) Eq presets, please note that preset 9 should be used for analysis purposes.

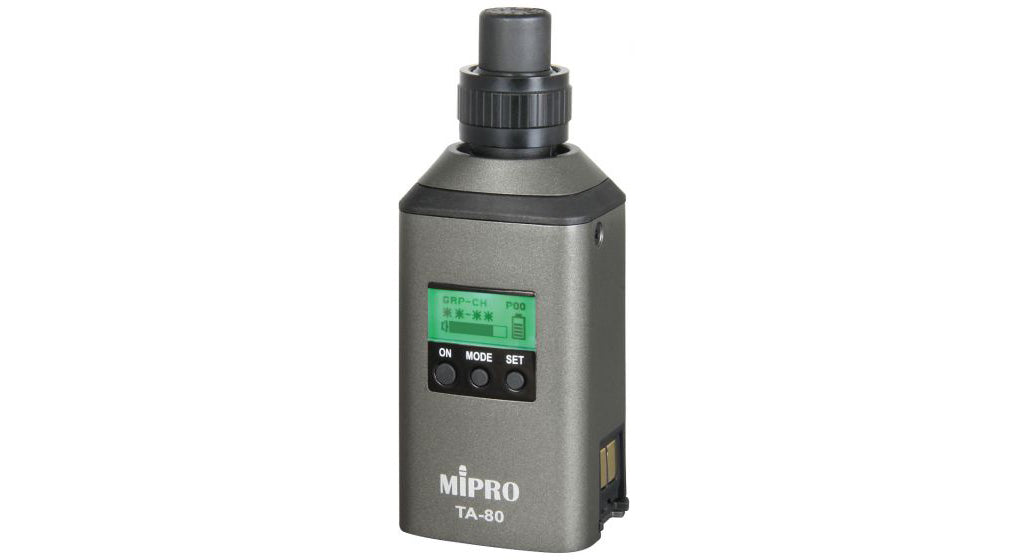

The TA-80 plug-on transmitter can provide selectable 12 or 48v phantom power and up to 48dB of gain in 6dB steps. With 48v phantom power and RF power set to 50mW, you can expect about 4.5 hours of life per battery charge with a low sensitivity microphone. The TA-80 transmitter uses a rechargeable ICR 18500 lithium ion battery.

NOTE Rational Acoustics cannot sell this product outside of the USA. In addition, this product contains lithium ion batteries and due to FAA regulations this product is restricted to ground transportation within the lower 48 states. It cannot ship to Alaska, Hawaii, or Puerto Rico.

KEY FEATURES

• Frequency Range of 480-544 MHz (E5 band, suitable for use in US and EU)

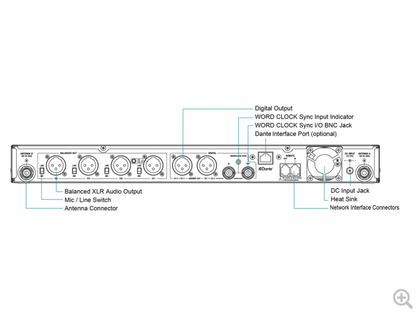

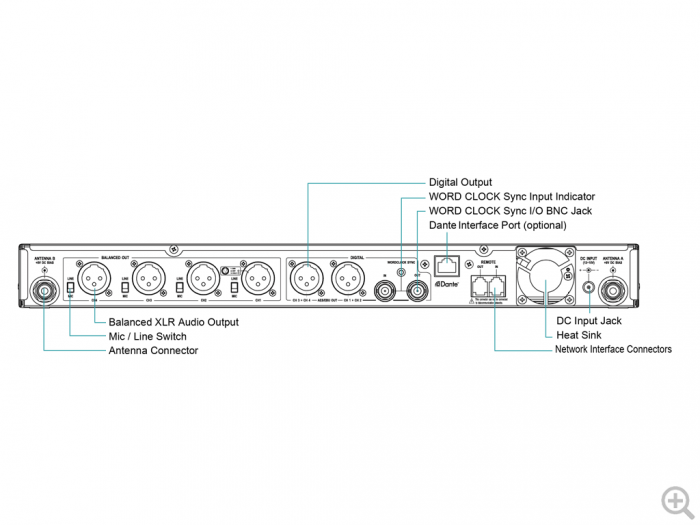

• 1RU space receiver w/XLR output
• Selectable transmitter phantom power 12-48v
• Adjustable transmitter gain of 48dB in 6dB steps
• Scan and Sync function via IR Sensor with ACT receiver
• XLR Output

WHAT'S IN THE BOX?

• ACT-848 4 Channel Wireless Receiver
• (4) TA-80 Plug On Transmitters

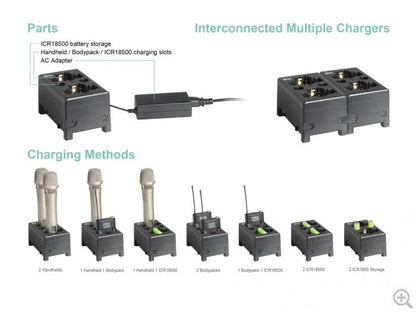

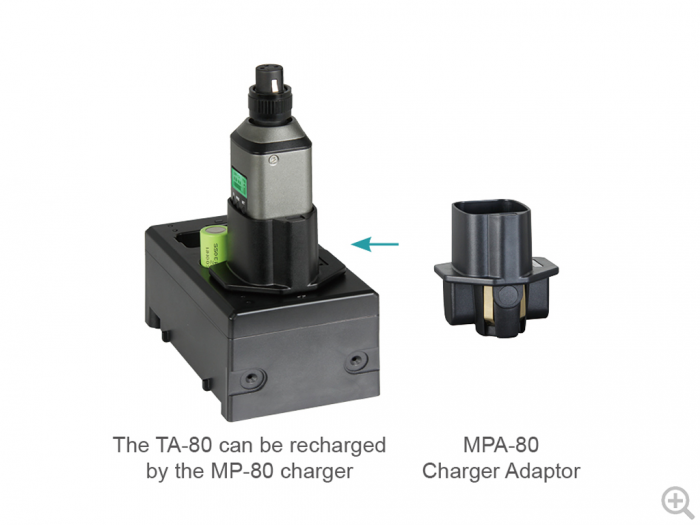

• (2) MP-80 Charging Stations

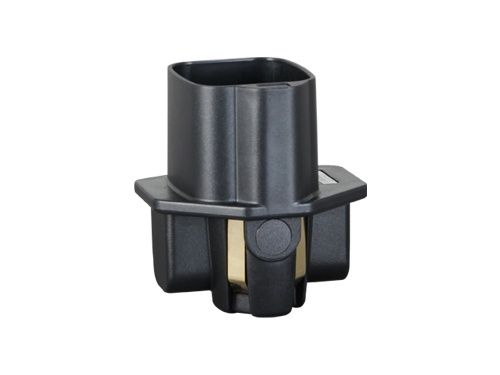

• (4) MPA-80 Charging Station Adapters
• (4) ICR 18500 Rechargeable Lithium Ion Batteries

• Padded and Zippered carrying pouches (for TA-80)
• 2x BNC Terminated Antenna
• ACT-848 IEC cable & MP-80 Power Supplies

• Link Cable for Multi-Unit Support

• ACT-848 Rack Mounting Kit

MiPro ACT-800 Series User Guide
MiPro TA-80 User Guide
ACT-848 Spec Sheet
